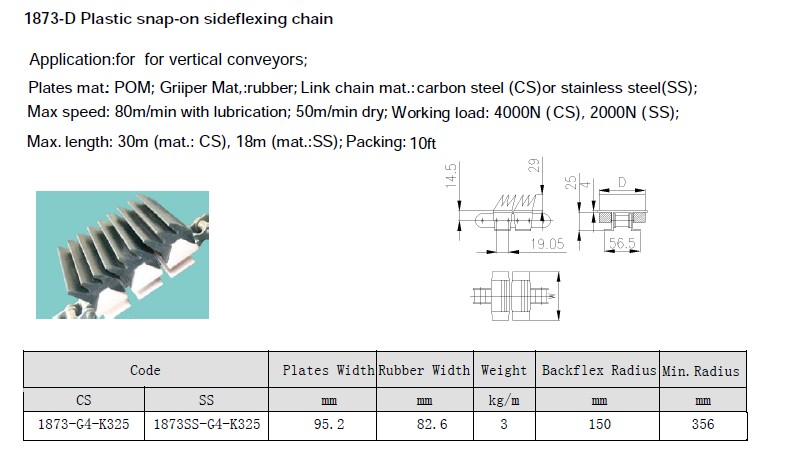

The Gripper chain is designed for vertical conveyors where the items are conveyed between two Grip links. The gripper 1873 chain supplied with moulded rubber inserts. The main application for Grip 1873-G4 is vertical conveying of cans or bottles.

The flights for the 1873-G4 chain are the Snap-On type. The uni Grip chains have a 0.75 in. pitch side flexing roller base chain. The recommended temperature area for the Grip chain is -40 to +80°C (-40 to +176°F).

Pitch: 19.05mm

Width: 82.5mm /114.3mm

Code: 1873SS-G4-K325

     1873SS-G4-K325

Materials: POM  Rubber inserts stainless steel base chains
