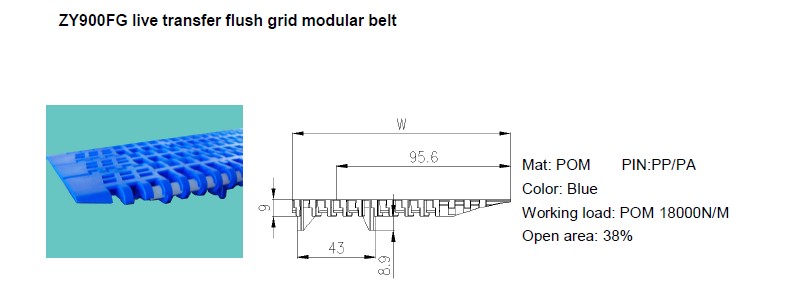

ZY900FG-L Live transfer flush grid modular belts

ZY900FG-L Live transfer flush grid modular belts

Products Code:ZY900FG-L

Origin Country:China

Brand:Zhiyue

Certificate:ISO9001,FDA

Materials: POM/PP

Color: White/Blue

Packing unit: 3mtr/roll



0.00
0.00


Products Code:ZY900FG-L

Origin Country:China

Brand:Zhiyue

Certificate:ISO9001,FDA

Materials: POM/PP

Color: White/Blue

Packing unit: 3mtr/roll

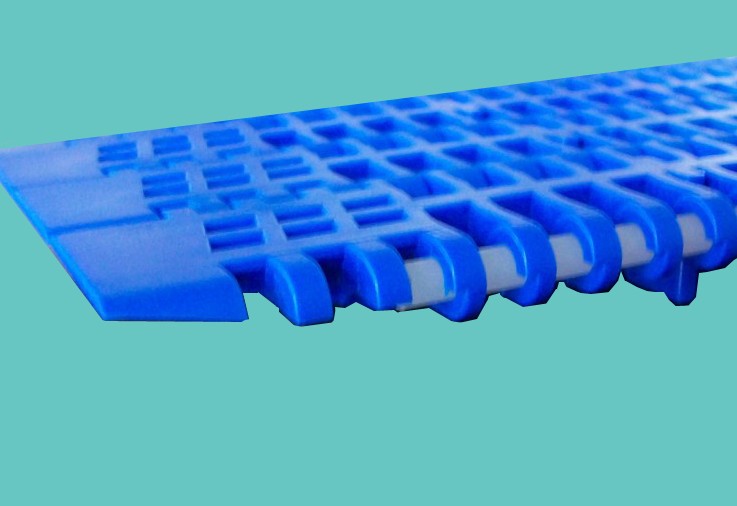

Active transfer modules allow the transfer of the products between two 90°conveyor tracks without using dead plates .available left and right version.

S900 flush grid modular belts live transfer flush grid belts flush grid conveyor belts plastic flush grid belts

CODE

MAT.

WORK TEP.

WORK LOAD

WEIGHT

OPEN AREA

COLOR

℃

N/M(25℃)

Kg/㎡

ZY900FG-L

POM

-40~+90

18000

5.80

38%

BLUE/WHITE

PP

+1~+105

9000

3.80

BLUE/WHITE

PE

-50~+80

5000

4.10

BLUE/WHITE


S900 MODULAR BELTS.pdf
