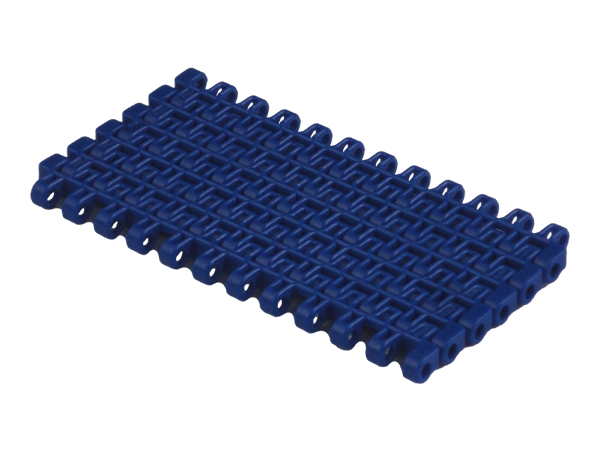

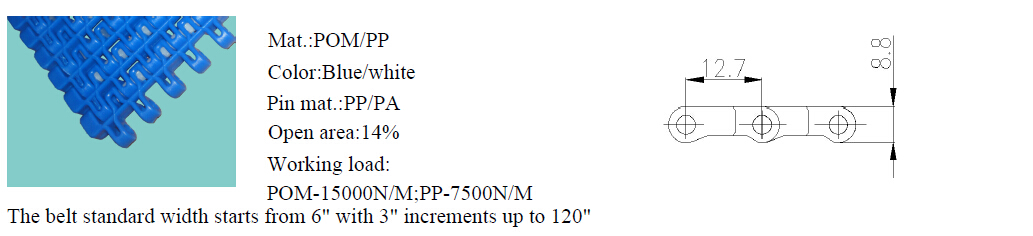

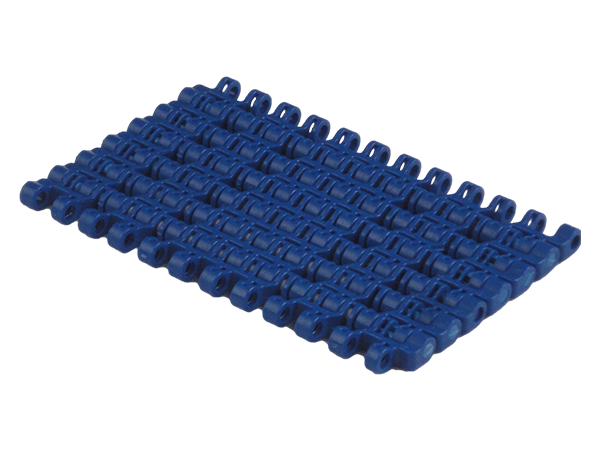

ZY800FG-2 Flush grid modular belts pitch 12.7mm(M-SNB M2 )

ZY800FG-2 Flush grid modular belts pitch 12.7mm(M-SNB M2 )

Products Code:ZY800FG-2

Origin Country:China

Brand:Zhiyue

Certificate:ISO9001,FDA

Materials: PP/POM

Color: Blue/White

Packing unit: 5mtr/roll

0.00
0.00


Products Code:ZY800FG-2

Origin Country:China

Brand:Zhiyue

Certificate:ISO9001,FDA

Materials: PP/POM

Color: Blue/White

Packing unit: 5mtr/roll


CODE

MAT.

WORK TEP.

WORK LOAD

WEIGHT

OPEN AREA

COLOR

℃

N/M(25℃)

Kg/㎡

ZY800FG-2

POM

-40~+90

15000

6.8

14%

BLUE/WHITE

PP

+1~+105

7500

4.1

BLUE/WHITE

PE

-50~+80

4500

4.2

BLUE/WHITE
